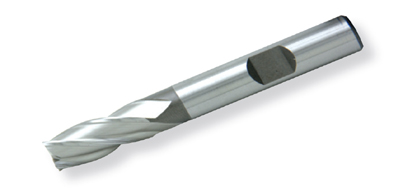

Finishing straight shank end mills DIN 844N
>
| Ø mm (e8) | L1 (mm) | L2 (mm) | Ø Shank /(h6) | Z | Uds. | Cod. |
|---|---|---|---|---|---|---|
| 2,00 | 51 | 7 | 6 | 4 | 1 | TVC0200 |
| 2,50 | 52 | 8 | 6 | 4 | 1 | TVC0250 |
| 3,00 | 52 | 8 | 6 | 4 | 1 | TVC0300 |
| 3,50 | 55 | 11 | 6 | 4 | 1 | TVC0350 |
| 4,00 | 55 | 11 | 6 | 4 | 1 | TVC0400 |
| 4,50 | 57 | 13 | 6 | 4 | 1 | TVC0450 |
| 5,00 | 57 | 13 | 6 | 4 | 1 | TVC0500 |
| 6,00 | 57 | 13 | 6 | 4 | 1 | TVC0600 |
| 7,00 | 66 | 16 | 10 | 4 | 1 | TVC0700 |
| 8,00 | 69 | 19 | 10 | 4 | 1 | TVC0800 |
| 9,00 | 69 | 19 | 10 | 4 | 1 | TVC0900 |
| 10,00 | 72 | 22 | 10 | 4 | 1 | TVC1000 |
| 11,00 | 79 | 22 | 12 | 4 | 1 | TVC1100 |
| 12,00 | 83 | 26 | 12 | 4 | 1 | TVC1200 |
| 13,00 | 83 | 26 | 12 | 4 | 1 | TVC1300 |
| 14,00 | 83 | 26 | 12 | 4 | 1 | TVC1400 |
| 15,00 | 83 | 26 | 12 | 4 | 1 | TVC1500 |
| 16,00 | 92 | 32 | 16 | 4 | 1 | TVC1600 |
| 17,00 | 92 | 32 | 16 | 4 | 1 | TVC1700 |
| 18,00 | 92 | 32 | 16 | 4 | 1 | TVC1800 |
| 20,00 | 104 | 38 | 20 | 4 | 1 | TVC2000 |
| 22,00 | 104 | 38 | 20 | 6 | 1 | TVC2200 |
| 24,00 | 121 | 45 | 25 | 6 | 1 | TVC2400 |
| 25,00 | 121 | 45 | 25 | 6 | 1 | TVC2500 |
| 26,00 | 121 | 45 | 25 | 6 | 1 | TVC2600 |
| 28,00 | 121 | 45 | 25 | 6 | 1 | TVC2800 |
| 30,00 | 121 | 45 | 25 | 6 | 1 | TVC3000 |
| 32,00 | 133 | 53 | 32 | 6 | 1 | TVC3200 |
| 36,00 | 133 | 53 | 32 | 6 | 1 | TVC3600 |
| 40,00 | 155 | 63 | 40 | 8 | 1 | TVC4000 |
