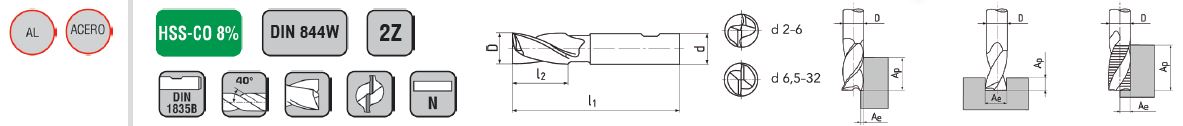

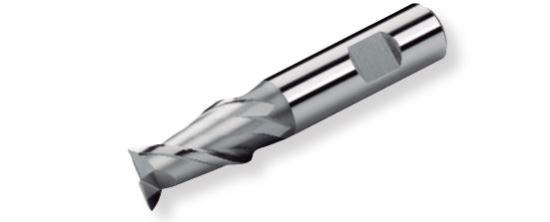

2Z Din 844W especial for Aluminium
| Ø mm (e8) | L1 (mm) | L2 (mm) | Ø Shank/(h6) | Z | Uds. | Cod. |
|---|---|---|---|---|---|---|
| 2,00 | 51 | 7 | 6 | 2 | 1 | TDW0200 |
| 2,50 | 52 | 8 | 6 | 2 | 1 | TDW0250 |
| 3,00 | 52 | 8 | 6 | 2 | 1 | TDW0300 |
| 3,50 | 54 | 10 | 6 | 2 | 1 | TDW0350 |
| 4,00 | 55 | 11 | 6 | 2 | 1 | TDW0400 |
| 4,50 | 55 | 11 | 6 | 2 | 1 | TDW0450 |
| 5,00 | 57 | 13 | 6 | 2 | 1 | TDW0500 |
| 5,50 | 57 | 13 | 6 | 2 | 1 | TDW0550 |
| 6,00 | 57 | 13 | 6 | 2 | 1 | TDW0600 |
| 6,50 | 66 | 16 | 10 | 2 | 1 | TDW0650 |
| 7,00 | 66 | 16 | 10 | 2 | 1 | TDW0700 |
| 7,50 | 66 | 16 | 10 | 2 | 1 | TDW0750 |
| 8,00 | 69 | 19 | 10 | 2 | 1 | TDW0800 |
| 8,50 | 69 | 19 | 10 | 2 | 1 | TDW0850 |
| 9,00 | 69 | 19 | 10 | 2 | 1 | TDW0900 |
| 9,50 | 69 | 19 | 10 | 2 | 1 | TDW0950 |
| 10,00 | 72 | 22 | 10 | 2 | 1 | TDW1000 |
| 11,00 | 79 | 22 | 12 | 2 | 1 | TDW1100 |
| 12,00 | 83 | 26 | 12 | 2 | 1 | TDW1200 |
| 13,00 | 83 | 26 | 12 | 2 | 1 | TDW1300 |
| 14,00 | 83 | 26 | 12 | 2 | 1 | TDW1400 |
| 15,00 | 83 | 26 | 12 | 2 | 1 | TDW1500 |
| 16,00 | 92 | 32 | 16 | 2 | 1 | TDW1600 |
| 17,00 | 92 | 32 | 16 | 2 | 1 | TDW1700 |
| 18,00 | 92 | 32 | 16 | 2 | 1 | TDW1800 |
| 19,00 | 92 | 32 | 16 | 2 | 1 | TDW1900 |
| 20,00 | 104 | 38 | 20 | 2 | 1 | TDW2000 |
| 21,00 | 104 | 38 | 20 | 2 | 1 | TDW2100 |
| 22,00 | 104 | 38 | 20 | 2 | 1 | TDW2200 |
| 24,00 | 121 | 45 | 25 | 2 | 1 | TDW2400 |
| 25,00 | 121 | 45 | 25 | 2 | 1 | TDW2500 |
| 26,00 | 121 | 45 | 25 | 2 | 1 | TDW2600 |
| 28,00 | 121 | 45 | 25 | 2 | 1 | TDW2800 |
| 30,00 | 121 | 45 | 25 | 2 | 1 | TDW3000 |
| 32,00 | 133 | 53 | 25 | 2 | 1 | TDW3200 |
