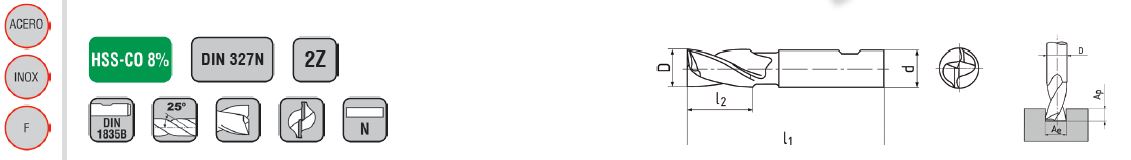

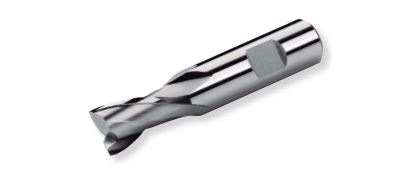

Fresas frontales 2Z
| Ø mm (e8) | L1 (mm) | L2 (mm) | Ø Mango/Shank (h6) | Z | Uds. | Cod. |
|---|---|---|---|---|---|---|
| 2,00 | 48 | 4 | 6 | 2 | 1 | TDC0200 |
| 2,50 | 49 | 5 | 6 | 2 | 1 | TDC0250 |
| 3,00 | 49 | 5 | 6 | 2 | 1 | TDC0300 |
| 3,50 | 51 | 7 | 6 | 2 | 1 | TDC0350 |
| 4,00 | 51 | 7 | 6 | 2 | 1 | TDC0400 |
| 5,00 | 52 | 8 | 6 | 2 | 1 | TDC0500 |
| 6,00 | 52 | 8 | 6 | 2 | 1 | TDC0600 |
| 7,00 | 60 | 10 | 10 | 2 | 1 | TDC0700 |
| 8,00 | 61 | 11 | 10 | 2 | 1 | TDC0800 |
| 9,00 | 61 | 11 | 10 | 2 | 1 | TDC0900 |
| 10,00 | 63 | 13 | 10 | 2 | 1 | TDC1000 |
| 11,00 | 70 | 13 | 12 | 2 | 1 | TDC1100 |
| 12,00 | 73 | 16 | 12 | 2 | 1 | TDC1200 |
| 13,00 | 73 | 16 | 12 | 2 | 1 | TDC1300 |
| 14,00 | 73 | 16 | 12 | 2 | 1 | TDC1400 |
| 15,00 | 73 | 16 | 16 | 2 | 1 | TDC1500 |
| 16,00 | 79 | 19 | 16 | 2 | 1 | TDC1600 |
| 17,00 | 79 | 19 | 16 | 2 | 1 | TDC1700 |
| 18,00 | 79 | 19 | 16 | 2 | 1 | TDC1800 |
| 19,00 | 79 | 19 | 16 | 2 | 1 | TDC1900 |
| 20,00 | 88 | 22 | 20 | 2 | 1 | TDC2000 |
| 22,00 | 88 | 22 | 20 | 2 | 1 | TDC2200 |
| 24,00 | 102 | 26 | 25 | 2 | 1 | TDC2400 |
| 26,00 | 102 | 26 | 25 | 2 | 1 | TDC2600 |
| 25,00 | 102 | 26 | 25 | 2 | 1 | TDC2500 |
| 28,00 | 102 | 26 | 25 | 2 | 1 | TDC2800 |
| 30,00 | 102 | 26 | 25 | 2 | 1 | TDC3000 |
| 32,00 | 112 | 32 | 32 | 2 | 1 | TDC3200 |
| 36,00 | 112 | 32 | 32 | 2 | 1 | TDC3600 |
| 40,00 | 130 | 38 | 38 | 2 | 1 | TDC4000 |
